#include <argument.h>

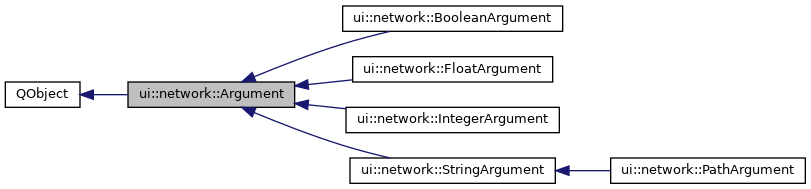

Inheritance diagram for ui::network::Argument:

[legend]

Public Member Functions
	~Argument () override

std::string	description () const

virtual ArgumentSP	clone () const =0
	clone Argument. Note that underlying QObject is not clonned so you will need to re-connect any signal/slots on a new instance manually More...

virtual QWidget *	create_input_widget (QWidget *parent=nullptr) const =0
	Create widget that could be used to edit Argument value. Created widget will be connection to `this` instance so `this->value` could be updated transperently. More...

virtual json	encode () const =0
	Encode argument into JSON object. More...

virtual	operator QString () const =0
	qDebug helper More...

void	init (json const &)

Static Public Member Functions
static ArgumentSP	create (json const &)

Protected Member Functions
	Argument ()

	Argument (Argument const &)

Private Attributes
std::string	description_

Detailed Description

Argument specification for HAL RPC, will be used as prototype when constructing particular Call we use protected inheritance from QObject so derived classes could create slots if they need to

Constructor & Destructor Documentation

◆ Argument() [1/2]

ui::network::Argument::Argument ( )

protecteddefault

◆ ~Argument()

ui::network::Argument::~Argument ( )

overridedefault

◆ Argument() [2/2]

ui::network::Argument::Argument ( Argument const & other )

protected

References description_.

Member Function Documentation

◆ clone()

virtual ArgumentSP ui::network::Argument::clone ( ) const

pure virtual

clone Argument. Note that underlying QObject is not clonned so you will need to re-connect any signal/slots on a new instance manually

Implemented in ui::network::PathArgument, ui::network::StringArgument, ui::network::FloatArgument, ui::network::IntegerArgument, and ui::network::BooleanArgument.

◆ create()

ArgumentSP ui::network::Argument::create ( json const & j )

static

factory method: tries to analyze JSON object and build on of Argument's derived class from it. return null on failure

References ui::network::PathArgument::directory, ui::network::PathArgument::file, plot::function, create_a3b_hbs::j, and basic::options::OptionKeys::ddg::json.

Referenced by ui::network::Bowman::on_bowman_thread_specification_received().

◆ create_input_widget()

virtual QWidget* ui::network::Argument::create_input_widget ( QWidget * parent = nullptr ) const

pure virtual

Create widget that could be used to edit Argument value. Created widget will be connection to this instance so this->value could be updated transperently.

Implemented in ui::network::PathArgument, ui::network::StringArgument, ui::network::FloatArgument, ui::network::IntegerArgument, and ui::network::BooleanArgument.
