forward declaration for SignalHub More...

#include <SignalHub.hh>

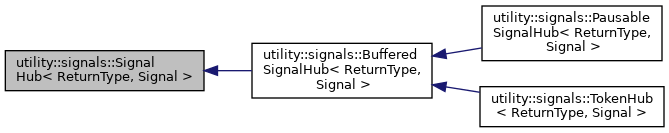

Inheritance diagram for utility::signals::SignalHub< ReturnType, Signal >:

[legend]

Public Types
typedef platform::Size	Size

Public Member Functions
	SignalHub ()
	default constructor More...

virtual	~SignalHub ()
	default destructor More...

void	operator() (Signal s)
	send signal to all observers connected to the hub More...

Size	size () const
	number of connections to the hub More...

void	block ()
	block signals from being sent More...

virtual void	unblock ()
	allow signals to be sent More...

bool	blocked () const
	are signals blocked? More...

void	clear ()
	clear all connections More...

template<typename MemFn , typename Ptr >
Link	connect (MemFn fn, Ptr ptr)
	connect an observer's member function to this hub More...

template<typename MemFn , typename Ptr >
bool	disconnect (MemFn fn, Ptr ptr)
	disconnect an observer's member function from this hub More...

Size	receive_linkunits_from (SignalHub const &src)
	transfer linkunits from source to this SignalHub More...

Links	current_links () const
	return a copy of the list of links currently being managed by this SignalHub More...

Protected Types
typedef boost::function1< ReturnType, Signal >	Function

typedef std::vector< LinkUnitOP >	LinkUnits

typedef std::vector< Link >	Links

Protected Member Functions
virtual bool	signal_allowed (Signal const)
	is signal allowed to be passed? More...

virtual void	send_signal (Signal s)
	send signal to all observers More...

virtual void	after_send ()
	initiate an action after send (no-op in SignalHub) More...

template<typename MemFn , typename Ptr >
Link	connect (MemFn fn, Ptr ptr, LinkUnits &links) const
	connect an observer's member function to the given LinkUnits More...

template<typename MemFn , typename Ptr >
bool	disconnect (MemFn fn, Ptr ptr, LinkUnits &links) const
	disconnect an observer's member function from the given LinkUnits More...

template<typename Functor >
LinkUnits::iterator	find_connection (Functor f, LinkUnits &links) const
	find a specific connection to this hub More...

void	send (Signal s, LinkUnits &links) const
	send signal to all links taking into account validity and local blocking More...

void	invalidate_all (LinkUnits &links) const
	invalidate and destroy internals of all links More...

void	remove_invalid (LinkUnits &links) const
	remove and destroy internals of invalid links More...

void	deallocate (LinkUnit &lu) const
	deallocate function stored in a LinkUnit More...

LinkUnits &	linkunits ()
	returns the list of LinkUnits More...

Private Member Functions
	SignalHub (SignalHub const &rval)
	disallow copy constructor More...

SignalHub &	operator= (SignalHub const &rval)
	disallow copy assignment More...

Private Attributes
LinkUnits	links_
	links specifying connections to observers More...

bool	blocked_
	flag blocking signals from being sent More...

bool	currently_sending_
	flag indicating SignalHub is currently in the process of sending signals; e.g. true will prevent remove_invalid() from causing any reallocation of the links_ list by erasing elements More...

Detailed Description

template<typename ReturnType, typename Signal>
class utility::signals::SignalHub< ReturnType, Signal >

forward declaration for SignalHub

primary class for function based implementation of observer pattern

This class is meant for use in implementations of the observer pattern that pass a single Signal object from the subject to its observers. An observer connects by binding one of its member functions to the SignalHub. The member function must be a unary function taking the desired Signal as its argument. Binding functions that pass references and const Signals will be interpreted correctly even if only 'Signal' is given as the template type. For example, when using a SignalHub< void, Signal > it's possible to bind the following:

void f( Signal )
void f( Signal const )
void f( Signal const & )

However, using something like Signal & or Signal const as the template type will enforce references and/or const-ness.

Warning: SignalHub objects are not copyable.

Member Typedef Documentation

◆ Function

template<typename ReturnType , typename Signal >

typedef boost::function1< ReturnType, Signal > utility::signals::SignalHub< ReturnType, Signal >::Function

protected

◆ Links

template<typename ReturnType , typename Signal >

typedef std::vector< Link > utility::signals::SignalHub< ReturnType, Signal >::Links

protected

◆ LinkUnits

template<typename ReturnType , typename Signal >

typedef std::vector< LinkUnitOP > utility::signals::SignalHub< ReturnType, Signal >::LinkUnits

protected

◆ Size

template<typename ReturnType , typename Signal >

typedef platform::Size utility::signals::SignalHub< ReturnType, Signal >::Size

Constructor & Destructor Documentation

◆ SignalHub() [1/2]

template<typename ReturnType , typename Signal >

utility::signals::SignalHub< ReturnType, Signal >::SignalHub ( )

inline

default constructor

◆ ~SignalHub()

template<typename ReturnType , typename Signal >

virtual utility::signals::SignalHub< ReturnType, Signal >::~SignalHub ( )

inlinevirtual

default destructor

References utility::signals::SignalHub< ReturnType, Signal >::invalidate_all(), and utility::signals::SignalHub< ReturnType, Signal >::links_.

◆ SignalHub() [2/2]

template<typename ReturnType , typename Signal >

utility::signals::SignalHub< ReturnType, Signal >::SignalHub ( SignalHub< ReturnType, Signal > const & rval )

private

disallow copy constructor

Member Function Documentation

◆ after_send()

template<typename ReturnType , typename Signal >

virtual void utility::signals::SignalHub< ReturnType, Signal >::after_send ( )

inlineprotectedvirtual

initiate an action after send (no-op in SignalHub)

Returns: true

Remarks: override this function to get custom behavior after signal has been sent to all observers

Reimplemented in utility::signals::PausableSignalHub< ReturnType, Signal >.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::operator()().

◆ block()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::block ( )

inline

block signals from being sent

References utility::signals::SignalHub< ReturnType, Signal >::blocked_.

Referenced by utility::signals::BufferedSignalHub< ReturnType, Signal >::buffer().

◆ blocked()

template<typename ReturnType , typename Signal >

bool utility::signals::SignalHub< ReturnType, Signal >::blocked ( ) const

inline

are signals blocked?

References utility::signals::SignalHub< ReturnType, Signal >::blocked_.

Referenced by utility::signals::BufferedSignalHub< ReturnType, Signal >::signal_allowed().

◆ clear()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::clear ( )

inline

clear all connections

References utility::signals::SignalHub< ReturnType, Signal >::invalidate_all(), and utility::signals::SignalHub< ReturnType, Signal >::links_.

Referenced by pyrosetta.bindings.pose.ResidueLabelAccessor::discard().

◆ connect() [1/2]

template<typename ReturnType , typename Signal >

template<typename MemFn , typename Ptr >

Link utility::signals::SignalHub< ReturnType, Signal >::connect	(	MemFn	fn,
		Ptr	ptr
	)

inline

connect an observer's member function to this hub

Template Parameters

MemFn unary member function

Parameters

fn	pointer to observer's member function
ptr	pointer to observer object

Returns: Link that can manage the connection

References kmeans_adaptive_kernel_density_bb_dependent_rotlib::fn, utility::signals::SignalHub< ReturnType, Signal >::links_, and ptr().

Referenced by job_manager.AppWindow::__init__(), PyMOL-Rosetta-relay-client.SecretInputDialog::__init__(), job_manager.CommandRunner::__init__(), and utility::signals::TokenHub< ReturnType, Signal >::connect_tokenize().

◆ connect() [2/2]

template<typename ReturnType , typename Signal >

template<typename MemFn , typename Ptr >

Link utility::signals::SignalHub< ReturnType, Signal >::connect	(	MemFn	fn,
		Ptr	ptr,
		LinkUnits &	links
	)		const

inlineprotected

connect an observer's member function to the given LinkUnits

Template Parameters

MemFn unary member function

Parameters

fn	pointer to observer's member function
ptr	pointer to observer object
links	function object gets added to this set of LinkUnits

Returns: Link that can manage the connection

References utility::signals::SignalHub< ReturnType, Signal >::find_connection(), kmeans_adaptive_kernel_density_bb_dependent_rotlib::fn, create_a3b_hbs::i, ptr(), and utility::signals::SignalHub< ReturnType, Signal >::remove_invalid().

Referenced by job_manager.AppWindow::__init__(), PyMOL-Rosetta-relay-client.SecretInputDialog::__init__(), and job_manager.CommandRunner::__init__().

◆ current_links()

template<typename ReturnType , typename Signal >

Links utility::signals::SignalHub< ReturnType, Signal >::current_links ( ) const

inline

return a copy of the list of links currently being managed by this SignalHub

References extract_by_sidechain_sasa_score::l, and utility::signals::SignalHub< ReturnType, Signal >::links_.

◆ deallocate()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::deallocate ( LinkUnit & lu ) const

inlineprotected

deallocate function stored in a LinkUnit

References utility::signals::LinkUnit::fn.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::disconnect(), and utility::signals::SignalHub< ReturnType, Signal >::invalidate_all().

◆ disconnect() [1/2]

template<typename ReturnType , typename Signal >

template<typename MemFn , typename Ptr >

bool utility::signals::SignalHub< ReturnType, Signal >::disconnect	(	MemFn	fn,
		Ptr	ptr
	)

inline

disconnect an observer's member function from this hub

Template Parameters

MemFn unary member function

Parameters

fn	pointer to observer's member function
ptr	pointer to observer object

Returns: true if disconnect successful, false if connection does not exist

References kmeans_adaptive_kernel_density_bb_dependent_rotlib::fn, utility::signals::SignalHub< ReturnType, Signal >::links_, and ptr().

Referenced by utility::signals::TokenHub< ReturnType, Signal >::disconnect().

◆ disconnect() [2/2]

template<typename ReturnType , typename Signal >

template<typename MemFn , typename Ptr >

bool utility::signals::SignalHub< ReturnType, Signal >::disconnect	(	MemFn	fn,
		Ptr	ptr,
		LinkUnits &	links
	)		const

inlineprotected

disconnect an observer's member function from the given LinkUnits

Template Parameters

MemFn unary member function

Parameters

fn	pointer to observer's member function
ptr	pointer to observer object
links	function object gets removed from this set of LinkUnits

Returns: true if disconnect successful, false if connection does not exist

References utility::signals::SignalHub< ReturnType, Signal >::deallocate(), utility::signals::SignalHub< ReturnType, Signal >::find_connection(), kmeans_adaptive_kernel_density_bb_dependent_rotlib::fn, create_a3b_hbs::i, ptr(), and utility::signals::SignalHub< ReturnType, Signal >::remove_invalid().

◆ find_connection()

template<typename ReturnType , typename Signal >

template<typename Functor >

LinkUnits::iterator utility::signals::SignalHub< ReturnType, Signal >::find_connection	(	Functor	f,
		LinkUnits &	links
	)		const

inlineprotected

find a specific connection to this hub

Template Parameters

Functor unary functor storable in Function wrapper and equality comparable with Function wrapper, typically result of boost::bind()

Returns: iterator if found, otherwise links.end()

References create_a3b_hbs::f, and create_a3b_hbs::i.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::connect(), and utility::signals::SignalHub< ReturnType, Signal >::disconnect().

◆ invalidate_all()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::invalidate_all ( LinkUnits & links ) const

inlineprotected

invalidate and destroy internals of all links

References utility::signals::SignalHub< ReturnType, Signal >::deallocate().

Referenced by utility::signals::SignalHub< ReturnType, Signal >::clear(), utility::signals::TokenHub< ReturnType, Signal >::clear_tokens(), utility::signals::SignalHub< ReturnType, Signal >::~SignalHub(), and utility::signals::TokenHub< ReturnType, Signal >::~TokenHub().

◆ linkunits()

template<typename ReturnType , typename Signal >

LinkUnits& utility::signals::SignalHub< ReturnType, Signal >::linkunits ( )

inlineprotected

returns the list of LinkUnits

References utility::signals::SignalHub< ReturnType, Signal >::links_.

Referenced by utility::signals::TokenHub< ReturnType, Signal >::send_signal().

◆ operator()()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::operator() ( Signal s )

inline

send signal to all observers connected to the hub

References utility::signals::SignalHub< ReturnType, Signal >::after_send(), docking::s, utility::signals::SignalHub< ReturnType, Signal >::send_signal(), and utility::signals::SignalHub< ReturnType, Signal >::signal_allowed().

Referenced by utility::signals::BufferedSignalHub< ReturnType, Signal >::release_buffer().

◆ operator=()

template<typename ReturnType , typename Signal >

SignalHub& utility::signals::SignalHub< ReturnType, Signal >::operator= ( SignalHub< ReturnType, Signal > const & rval )

private

disallow copy assignment

◆ receive_linkunits_from()

template<typename ReturnType , typename Signal >

Size utility::signals::SignalHub< ReturnType, Signal >::receive_linkunits_from ( SignalHub< ReturnType, Signal > const & src )

inline

transfer linkunits from source to this SignalHub

Parameters

src	The source SignalHub to use.

Returns: the number of links transferred

Warning: When using this function, make sure any observers not using Link connection management become aware of any changes in subject.

References utility::signals::SignalHub< ReturnType, Signal >::links_, utility::signals::SignalHub< ReturnType, Signal >::remove_invalid(), and utility::signals::SignalHub< ReturnType, Signal >::size().

◆ remove_invalid()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::remove_invalid ( LinkUnits & links ) const

inlineprotected

remove and destroy internals of invalid links

References utility::signals::SignalHub< ReturnType, Signal >::currently_sending_, and create_a3b_hbs::i.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::connect(), utility::signals::SignalHub< ReturnType, Signal >::disconnect(), utility::signals::TokenHub< ReturnType, Signal >::n_tokens(), utility::signals::SignalHub< ReturnType, Signal >::receive_linkunits_from(), utility::signals::TokenHub< ReturnType, Signal >::receive_tokens_from(), utility::signals::SignalHub< ReturnType, Signal >::send(), and utility::signals::SignalHub< ReturnType, Signal >::size().

◆ send()

template<typename ReturnType , typename Signal >

void utility::signals::SignalHub< ReturnType, Signal >::send	(	Signal	s,
		LinkUnits &	links
	)		const

inlineprotected

send signal to all links taking into account validity and local blocking

References utility::signals::SignalHub< ReturnType, Signal >::currently_sending_, utility::signals::SignalHub< ReturnType, Signal >::remove_invalid(), and docking::s.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::send_signal(), and utility::signals::TokenHub< ReturnType, Signal >::send_signal().

◆ send_signal()

template<typename ReturnType , typename Signal >

virtual void utility::signals::SignalHub< ReturnType, Signal >::send_signal ( Signal s )

inlineprotectedvirtual

send signal to all observers

Remarks: override this function to get custom signal sending behavior

Reimplemented in utility::signals::TokenHub< ReturnType, Signal >.

References utility::signals::SignalHub< ReturnType, Signal >::links_, docking::s, and utility::signals::SignalHub< ReturnType, Signal >::send().

Referenced by utility::signals::SignalHub< ReturnType, Signal >::operator()().

◆ signal_allowed()

template<typename ReturnType , typename Signal >

virtual bool utility::signals::SignalHub< ReturnType, Signal >::signal_allowed ( Signal const )

inlineprotectedvirtual

is signal allowed to be passed?

Returns: true if hub is not blocked, otherwise false

Remarks: override this function to get custom signal passing behavior, such as filtering or buffering

Reimplemented in utility::signals::BufferedSignalHub< ReturnType, Signal >.

References utility::signals::SignalHub< ReturnType, Signal >::blocked_.

Referenced by utility::signals::SignalHub< ReturnType, Signal >::operator()().

◆ size()

template<typename ReturnType , typename Signal >

Size utility::signals::SignalHub< ReturnType, Signal >::size ( ) const

inline

number of connections to the hub

References utility::signals::SignalHub< ReturnType, Signal >::links_, and utility::signals::SignalHub< ReturnType, Signal >::remove_invalid().

Referenced by utility::signals::SignalHub< ReturnType, Signal >::receive_linkunits_from().

◆ unblock()

template<typename ReturnType , typename Signal >

virtual void utility::signals::SignalHub< ReturnType, Signal >::unblock ( )

inlinevirtual

allow signals to be sent

Remarks: override this to allow for custom behavior upon unblocking, such as buffer release

Reimplemented in utility::signals::BufferedSignalHub< ReturnType, Signal >.

References utility::signals::SignalHub< ReturnType, Signal >::blocked_.

Referenced by utility::signals::BufferedSignalHub< ReturnType, Signal >::unblock().

Member Data Documentation

◆ blocked_

template<typename ReturnType , typename Signal >

bool utility::signals::SignalHub< ReturnType, Signal >::blocked_

private

flag blocking signals from being sent

Referenced by utility::signals::SignalHub< ReturnType, Signal >::block(), utility::signals::SignalHub< ReturnType, Signal >::blocked(), utility::signals::SignalHub< ReturnType, Signal >::signal_allowed(), and utility::signals::SignalHub< ReturnType, Signal >::unblock().

◆ currently_sending_

template<typename ReturnType , typename Signal >

bool utility::signals::SignalHub< ReturnType, Signal >::currently_sending_

mutableprivate

flag indicating SignalHub is currently in the process of sending signals; e.g. true will prevent remove_invalid() from causing any reallocation of the links_ list by erasing elements

Referenced by utility::signals::SignalHub< ReturnType, Signal >::remove_invalid(), and utility::signals::SignalHub< ReturnType, Signal >::send().

◆ links_

template<typename ReturnType , typename Signal >

LinkUnits utility::signals::SignalHub< ReturnType, Signal >::links_

mutableprivate

links specifying connections to observers

The documentation for this class was generated from the following files:

src/utility/signals/SignalHub.fwd.hh
src/utility/signals/SignalHub.hh

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<typename ReturnType, typename Signal> class utility::signals::SignalHub< ReturnType, Signal >

Member Typedef Documentation

◆ Function

◆ Links

◆ LinkUnits

◆ Size

Constructor & Destructor Documentation

◆ SignalHub() [1/2]

◆ ~SignalHub()

◆ SignalHub() [2/2]

Member Function Documentation

◆ after_send()

◆ block()

◆ blocked()

◆ clear()

◆ connect() [1/2]

◆ connect() [2/2]

◆ current_links()

◆ deallocate()

◆ disconnect() [1/2]

◆ disconnect() [2/2]

◆ find_connection()

◆ invalidate_all()

◆ linkunits()

◆ operator()()

◆ operator=()

◆ receive_linkunits_from()

◆ remove_invalid()

◆ send()

◆ send_signal()

◆ signal_allowed()

◆ size()

◆ unblock()

Member Data Documentation

◆ blocked_

◆ currently_sending_

◆ links_

template<typename ReturnType, typename Signal>
class utility::signals::SignalHub< ReturnType, Signal >
